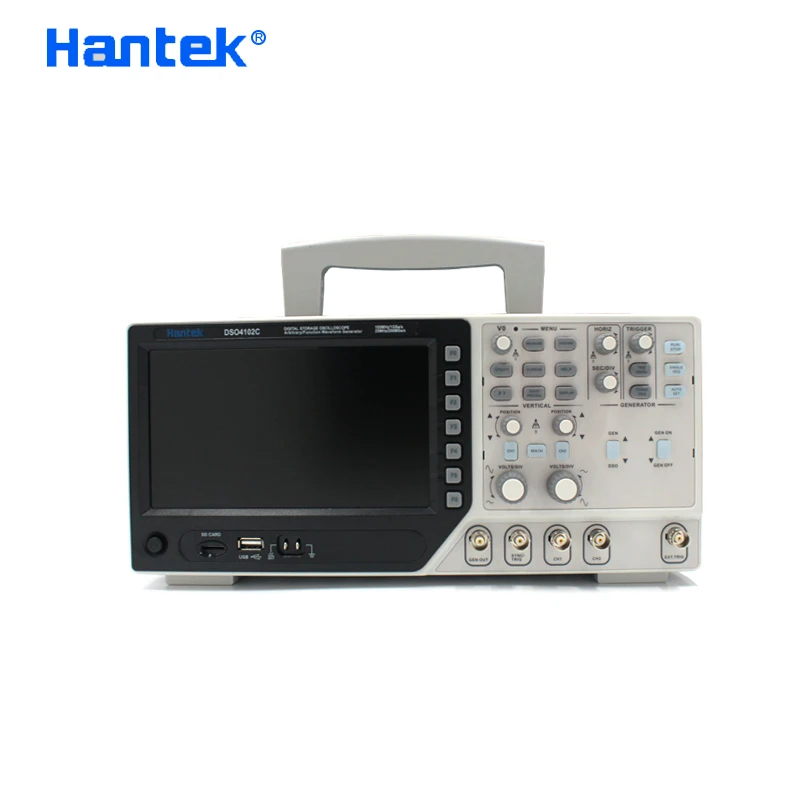

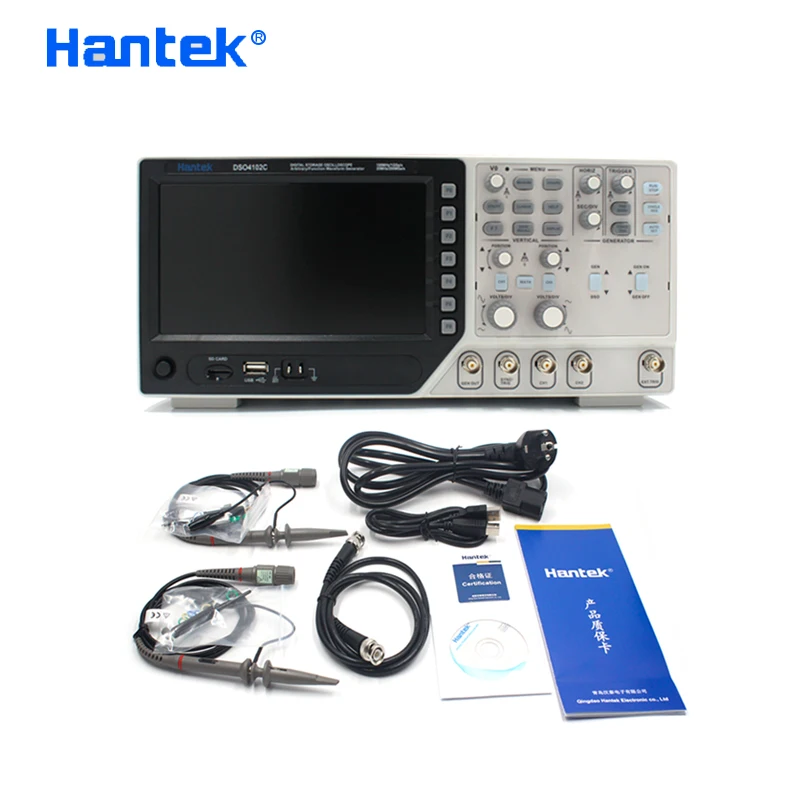

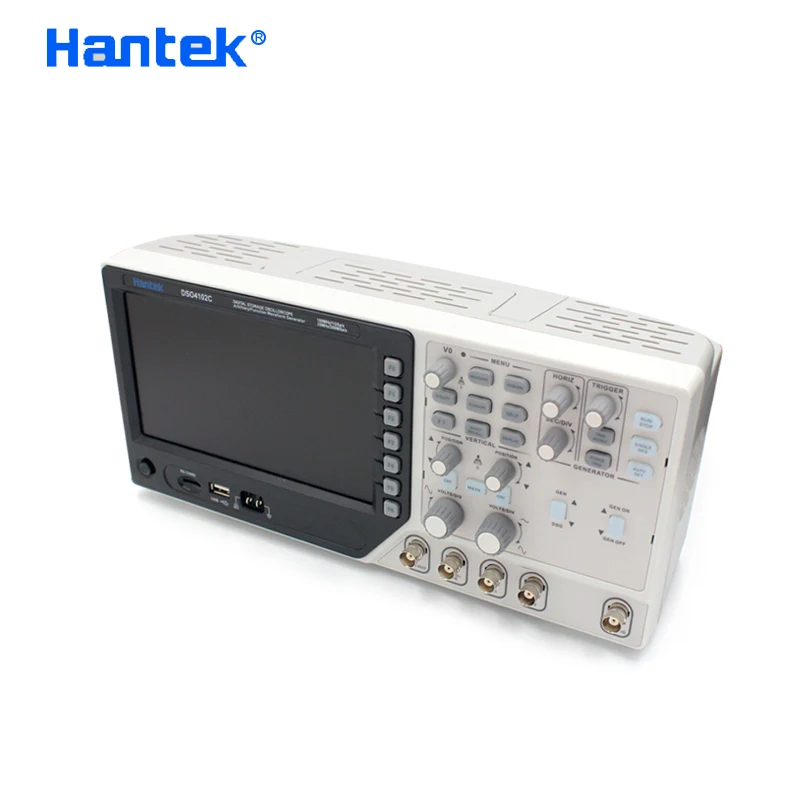

Buyer show Hantek Oscilloscope Portable Benchtop DSO4102C 2ch 100MHz USB Oscilloscopes Arbitrary/Function Waveform Generator Diagnostic-tool *2 Channel Digital Oscilloscope +Arbitrary/Function Waveform Generator +Synchronizing Signal+ External Trigger;Powerful, easily switch *100MHz Bandwidth; 1GSa/s Sample Rate; *2 Channel Oscilloscope; 40K Record Length; *The Keys for osilloscope and waveform generator is seperated;More Convenient to operate it simultaneously *7 inch 64K color LCD display, Resolution 800x480;Clear and vivid waveform display *32 kinds of Automatic measurement, with FFT function;Saving the user time and make work more simple and efficient *Powerful trigger function: Video, Edge, Pluse Width, Slope, Overtime, Alternate Trigger. *Arbitrary/Function Waveform Generator:25MHz, 12 bits resolution, 200MHz DDS,Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC; easy to simulate transducer. *25MHz Arbitrary waveform output ; *Support SD card, VGA function (optional); *Integrated USB Host, Support USB disk storage, USB interface/SD card system update Model DSO4202C DSO4102C DSO4072C Oscilloscope Sample Rate Sampling Rate Range: 1GSa/s Equivalent Sample Rate: 25GSa/s Acquisition Modes Normal Normal data only Peak Detect High-frequency and randon glith capture Average Wavefom Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inpits Impendance 1M2% 20pF3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×) CAT III: 150VRMS(1×); Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur. Horizontal Sample Rate Range 1GS/s Waveform Interpolation (sin x)/x Record Length 40K SEC/DIV Range 2ns/div to 40s/div 4ns/div to 40s/div Sample Rate and 50ppm at over any 1ms time interval) Delay Time Accuracy Position Range 2ns/div to 10ns/div; 20ns/div to 80us/div; (-8div x s/div) to 40ms; (-4div x s/div) to 20ms; 200us/div to 40s/div; (-8div x s/div) to 400s Delta Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode: (1 sample interval +100ppm × reading + 0.6ns); >16 averages: (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 Vertical Vertical Resolution 8-bit resolution, all channel sampled simultaneously Position Range 2mV/div to 10V/div Bandwidth 200MHz 100MHz 70MHz Rise Time at BNC( typical) 1.8ns 3.5ns 5ns Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled 2mV/div to 20mV/div, 400mV; 50mV/div to 200mV/div, 1V 500mV/div to 2V/div, 40V; 5V/div, 50V Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point Bandwidth Limit Low Frequency Response (-3db) 10Hz at BNC DC Gain Accuracy 3% for Normal or Average acquisition mode, 5V/div to 10mV/div; 4% for Normal or Average acquisition mode, 5mV/div to 2mV/div DC Measurement Accuracy, Average Acquisition Mode When vertical displacement is zero, and N 16: (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N16: [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of 16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, EXT, EXT/5, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, Noise Reject, HF Reject, LF Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DCEXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DCEXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz Trigger Level Range CH1/CH2: 8 divisions from center of screen; EXT: 1.2V; EXT/5:6V Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times 20ns CH1/CH2: 0.2div × volts/div within 4 divisions from center of screen; EXT: (6% of setting + 40mV); EXT/5: (6% of setting + 200mV); Set Level to 50%(typical) Operates with input signals 50Hz Video Trigger Video Trigger Type CH1, CH2: Peak-to-peak amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V Signal Formats and Field Rates, Video Trigger Type Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Mode Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) 30ppm (including all frequency reference errors and 1 count errors) Frequency Range AC coupled, from 4Hz minimum to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Voltage difference between cursors: V Time difference between cursors: T Reciprocal of T in Hertz (1/T) Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Signal Source Mode Waveform Impedance DC-25MHz Sample Rate 200MHzDDS Output Waveform Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC Frequency Resolution 0.1% Waveform Depth 4KSa Vertical Resolution 12bit Frequency Stability <30ppm Waveform Range 3.5V Max Output Impedance 50 Output Current 50mA Ipeak=100mA System BW 25M Harmonic Distortion -50dBc 1KHz -40dBc 10KHz General Features Display Display Type 7 inch 64K color TFT (diagonal liquid crystal) Display Resolution 800 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 5Vpp into 1M load Frequency(typical) 1kHz Power Supply Supply Voltage 100-120VACRMS(10%), 45Hz to 440Hz, CAt II 120-240VACRMS(10%), 45Hz to 66Hz, CATII Power Consumption <30W Fuse 2A, T rating, 250V Environmental Temperature Operating: 32 to 122 (0 to 50); Nonoperating: -40 to 159.8(-40 to +71) Cooling Method Convection Humidity +104 or below (+40 or below): 90% relative humidity; 106to 122(+41 to 50): 60% relative humidity Altitude Operating: Below 3,000m (10,000 feet); Nonoperaring: Below 15,000m(50,000 feet) Mechanical Size Length 385mm, Width 200mm, Height 245mm Weight 3.5KG(with Packing); 2.08KG(without Packing
